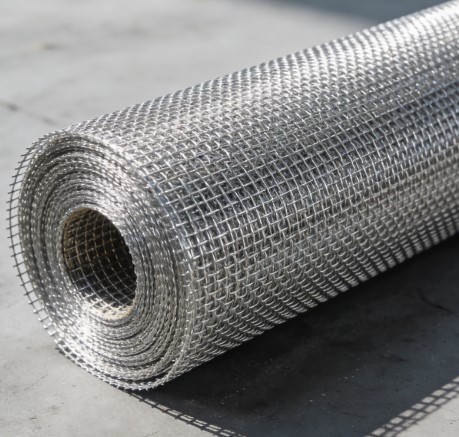

Stainless Steel Woven Wire Mesh with 14Mesh

  • Stainless Steel Woven Wire Mesh with 14Mesh
Plaats van herkomst China
Min. bestelaantal 1 rol
Prijs Based on quantity
Verpakking Details Binnenkant met een document buis, buitenkant met plastic film of waterdicht document, dan in houten
Levertijd EEN WEEK
Betalingscondities T/T
Productdetails
Materiaal Roestvrij staal Maat 1mx30m
mesh-nummer 14 mesh
Laat een bericht achter
Productomschrijving
Stainless Steel Woven Wire Mesh with 14Mesh
Engineered for enhanced particle retention, our 14 Mesh Stainless Steel Woven Mesh provides a finer screening solution compared to coarser meshes. It is manufactured with a precise over-and-under weave pattern using corrosion-resistant stainless steel wires, resulting in a stable and reliable screen. This mesh offers a solid combination of open area for good flow and increased mesh count for capturing smaller particles, making it a versatile choice for medium-duty filtration and separation applications.
Primary Uses and Applications
  • Aggregate & Sand Sizing: Commonly used in the aggregate industry for sizing sand, gravel, and crushed stone.
  • Pulp & Paper Processing: Functions as a screen or deck in pulp screening and paper mill applications.
  • Plastic & Pellet Separation: Effective in sorting and removing fines from plastic pellets and resin materials.
  • Industrial Sifting: Employed in various sifting operations for food processing, pharmaceuticals, and chemical powders.
  • Insect Screening: Can serve as a heavy-duty insect screen for industrial or agricultural ventilation.
Specifications
Mesh Count 14 mesh per linear inch (both warp and weft)
Wire Diameter Typically 0.023" (0.58mm) or 0.020" (0.51mm)
Opening Size Approximately 0.071" (1.80mm) with a standard 0.023" wire
Weave Type Plain Square Weave
Material 304, 316 Stainless Steel, and other alloys upon request
Width & Length Available in standard rolls or custom-cut dimensions
